Bollard Crash Test Explained: How K4, K8, K12 Tests Work and Why They Matter

Why Crash Testing Is the Only Way to Know If a Bollard Actually Works

A bollard may look strong on a specification sheet — thick steel wall, heavy foundation, robust hydraulic drive. But without a controlled, instrumented crash test, there is no scientific basis to claim it can stop a vehicle at a given speed and weight. Crash testing converts engineering claims into certified, repeatable performance data.

For procurement officers, security consultants, and government project managers, crash test certification is often a mandatory requirement — not a nice-to-have.

How a Certified Crash Test Works

Step 1: Test Article Preparation

The bollard foundation is constructed according to the manufacturer's published installation specifications — including foundation depth, concrete grade, and drainage provisions. The bollard is installed exactly as it would be in a real-world project.

Step 2: Test Vehicle Preparation

Under ASTM F2656 and IWA 14-1, the standard test vehicle is a 6,800 kg (15,000 lb) rigid truck. The vehicle is instrumented with accelerometers and data loggers to record deceleration forces during impact. The vehicle must be in running condition with functioning brakes (though brakes are not applied during the test).

Step 3: Impact Run

The vehicle accelerates to the target speed (30/40/50 mph = 48/64/80 km/h) and impacts the bollard. High-speed cameras record the collision at 500-1000 fps. The bollard's deformation, the vehicle's stopping distance, and any debris scatter are all documented.

Step 4: Penetration Measurement

After impact, the distance from the bollard's original position to the farthest point of the vehicle (or major debris) is measured. This is the penetration distance. To pass, the penetration must be within the standard's limit (typically 1 meter / 3.3 ft for K4-K12 ratings).

Understanding K-Ratings (ASTM F2656)

K4 (M30): Stops 6,800 kg truck at 48 km/h; penetration ≤1m. Suitable for commercial, retail, schools.

K8 (M40): Stops 6,800 kg truck at 64 km/h; penetration ≤1m. Government, airports, data centers.

K12 (M50): Stops 6,800 kg truck at 80 km/h; penetration ≤1m. Embassies, military, nuclear facilities.

IWA 14-1 M-Ratings (International Standard)

IWA 14-1 also specifies vehicle type variants (e.g., M50(N1) for a lighter 1,500 kg passenger car test), making it more flexible for different threat profiles.

What Crash Test Certification Does NOT Guarantee

Importantly, a crash rating applies only to the exact installation conditions tested — foundation depth, soil type, concrete strength, and spacing. If you install the same bollard with a shallower foundation or in poor soil without engineering review, the certified rating no longer applies.

This is why reputable manufacturers provide installation-dependent rating guidance and why specifiers must not assume 'K4-rated bollard' automatically means K4 performance in every installation scenario.

UPARK Crash-Tested Bollard Systems

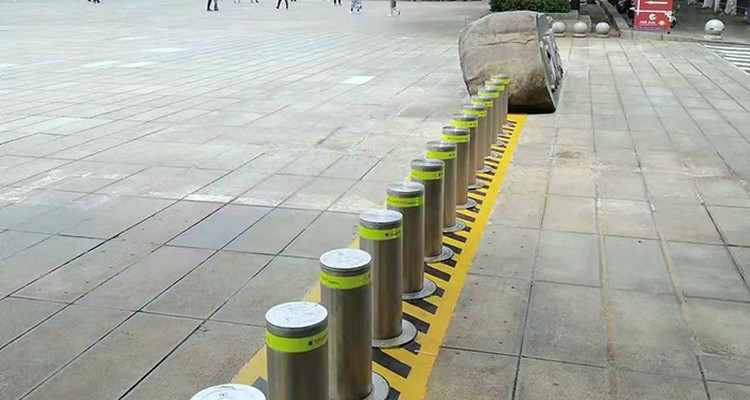

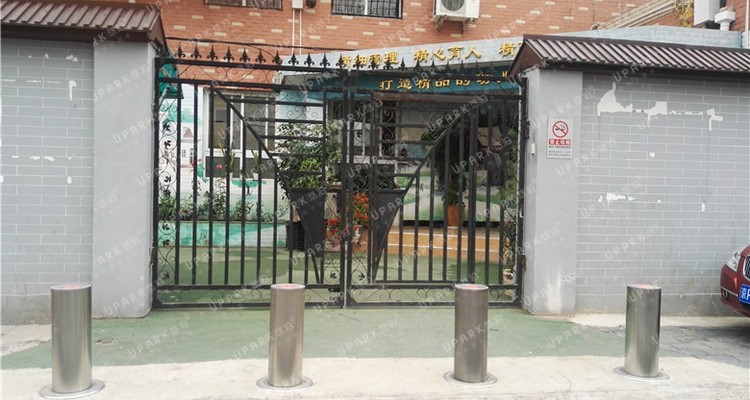

UPARK automatic rising bollards are tested to international crash test standards (IWA 14-1 and ASTM F2656 equivalent). Our test reports are available for download and can be submitted as part of your project's compliance documentation. Contact UPARK for certified bollard solutions matched to your threat assessment and security grading requirements.
