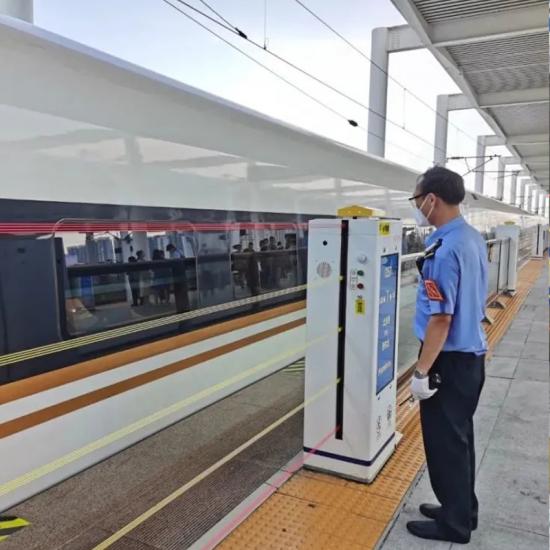

UPARK Automatic Platform Guardrail System is a state-of-the-art safety solution designed for railway platforms, subway stations, and tram stops. This intelligent guardrail system automatically controls passenger access to platform edges, effectively preventing accidents caused by passengers or staff accidentally entering railway tracks or crossing safety lines.

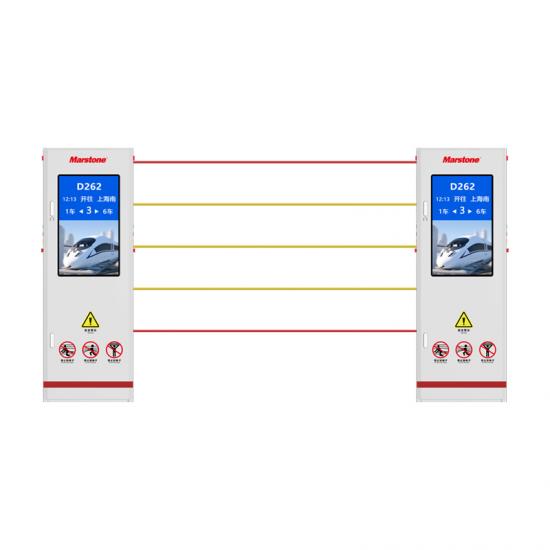

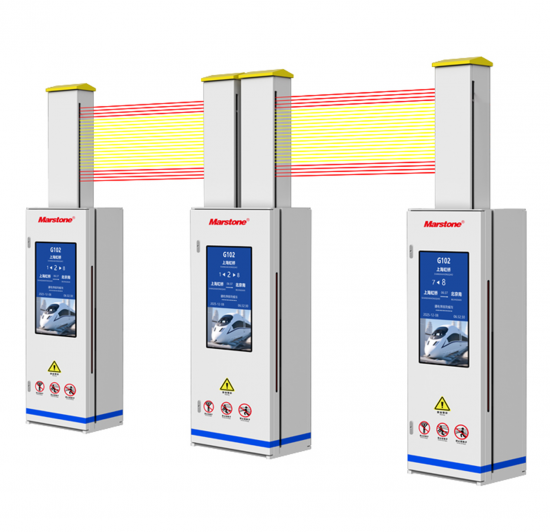

The system consists of four main components: guardrail mechanism, control device, alarm system, and power module. Using advanced electromechanical drive technology, the guardrail automatically raises and lowers based on train arrival/departure signals, ensuring safe and efficient passenger flow management.
Ideal for: metro stations, railway terminals, high-speed rail platforms, light rail systems (LRT), tram stops, and passenger transit hubs. Compatible with both new construction and retrofitting projects.
1. Intelligent Infrared Detection System
Equipped with advanced infrared spotlight sensors that monitor the safety line in real-time. The system automatically triggers visual and audible alarms when passengers or objects approach or cross the designated safety boundary, providing early warning to prevent accidents.
2. Visual Traffic Light Warning System

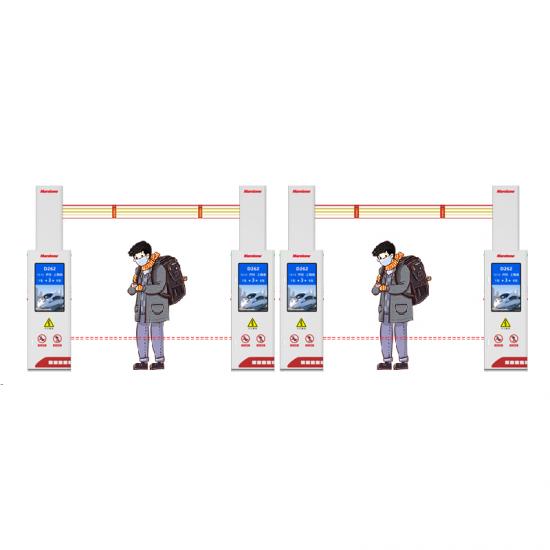

Features a three-color traffic light indicator: RED light indicates the guardrail is in raised (blocking) position, prohibiting passage; GREEN light shows the guardrail is lowered, allowing safe passage. An integrated sharp alarm sound activates when unauthorized approach is detected, ensuring maximum safety.
3. Extreme Low-Temperature Operation
Designed with electromechanical transmission structure that operates normally in temperatures as low as -40°C without requiring additional heating devices. Suitable for outdoor installations in cold climates, ensuring year-round reliability.
4. Ultra-Long Service Life
Powered by high-quality industrial-grade motors tested for over 250,000 continuous operation cycles without failure. Designed for 10+ years of maintenance-free operation, significantly reducing lifecycle costs.
5. Dual Emergency Release Function
Equipped with dual emergency release mechanisms: (1) Power failure automatic descent - guardrail automatically lowers during power outages; (2) Manual emergency release rope - allows quick manual operation in emergencies. Both mechanisms achieve full opening within 5 seconds.
6. Superior Impact Resistance
The only guardrail system on the market with certified impact resistance. Maintains full operational capability after withstanding 300kg impact force, providing maximum protection for passengers and station infrastructure. Tested according to EN 13231-3 standards.
7. IP54 Waterproof Rating
Waterproof design with IP54 protection rating. Resistant to dust, water jets, and temporary immersion. Suitable for outdoor installations in all weather conditions, from heavy rain to dusty environments.
8. Low Power Consumption
Energy-efficient design with standby power consumption < 10W. Uses 36V safe voltage, complying with low-voltage safety standards. Optional solar panel integration available for sustainable operation.
