Singapore's Light Rail Transit (LRT) network serves as the feeder backbone for the city-state's public transport system. Operating across three lines with 43 stations, the LRT faces a challenge that many metro operators recognize: how to improve platform safety without the cost and disruption of full-height platform screen doors.

The Land Transport Authority (LTA) has set ambitious safety targets. Platform incidents, while rare, carry outsized consequences in a system that moves millions of passengers daily. The solution needed to work with existing station infrastructure, accommodate mixed rolling stock, and install without extended service disruptions.

Why Full-Height PSDs Were Not the Answer

Singapore's MRT underground stations have used full-height platform screen doors for years, and they work well in that environment. The LRT is different. Stations are above-ground, open-air, and designed without the structural provisions needed to support the weight of glass-and-steel PSD walls. Retrofitting PSDs onto 43 stations would require extensive civil works, months of partial closures, and a budget that would compete with other critical transport investments.

Half-height platform gates were considered and rejected. They provide a partial barrier but leave significant gaps that determined individuals could bypass. The LTA needed a solution that matched the protective height of full-height doors without the structural demands.

The Cable Barrier Fit

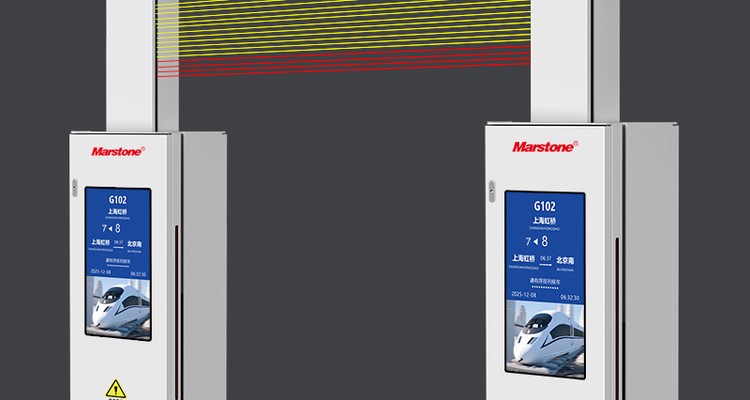

Retractable cable barriers met the brief on every dimension. The system uses six stainless-steel cables per module, each 5mm in diameter, spaced to prevent passage. When extended, the barrier reaches 2 meters in height, matching the protective profile of full-height PSDs. When retracted during train boarding, the cables rise to 1.4 meters, allowing full passenger flow without restricting platform width.

Installation required no structural modification to existing LRT stations. The drive units mount on the platform edge with a setback of just 1.2 meters, compatible with all train configurations on the network. The pure electric mechanical drive system, no hydraulics or pneumatics, simplified maintenance and eliminated the risk of fluid leaks in Singapore's tropical climate.

Operational Results

The key metric for LTA was not just safety, but safety without operational compromise. The cable barriers integrate with existing train signalling through CAN bus and dual-redundant Ethernet. The five-level control architecture gives station staff local override capability (LCB), while the system operates autonomously under normal conditions. Emergency retract modes, obstacle detection, and UPS backup power provide the same safety layers expected from PSD systems.

Maintenance data has been encouraging. The 304 stainless-steel cables, rated for one million lift cycles, require minimal attention beyond periodic tension checks. Unlike PSD door mechanisms that demand regular sensor calibration and glass panel replacement, the cable barrier's simpler design translates directly to lower maintenance hours per station per year.

What Other Cities Can Learn

Singapore's approach reflects a growing recognition that platform safety solutions should match station conditions, not the other way around. Underground stations with climate control needs and standardized train fleets justify full-height PSDs. Above-ground, open-air stations, especially on feeder and light rail networks, benefit more from the flexibility and cost profile of cable barriers.

The lesson for operators in Southeast Asia, the Middle East, and Latin America is clear. If your stations were not designed for PSDs from day one, you do not need to rebuild them to get effective platform protection. The Singapore LRT deployment demonstrates that automatic fence gate technology can be the smarter path.

For operators also managing depot and facility access points, automatic bollard systems built on the same low-maintenance philosophy protect perimeters without the overhead of staffed checkpoints.
